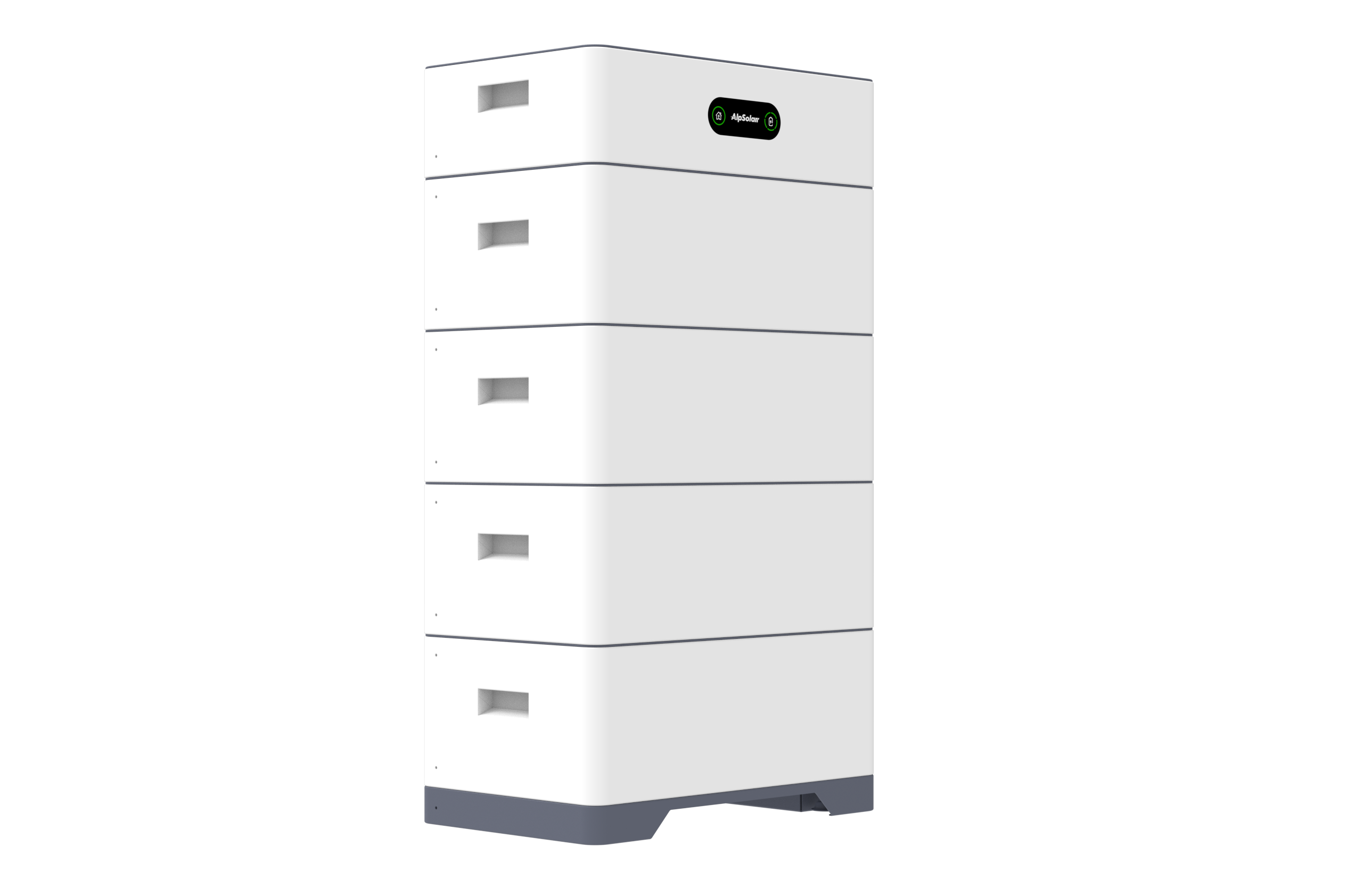

COMO H5

High Voltage Battery System

LFP | IP65 | 10.24-30.72kWh | 6-Layer Safety

Modular safety,with six layers of protection per battery pack
-Full-tab cell design reduces thermal resistance;
-Built-in fire extinguishing module automatically extinguishes fires within 5 seconds;
-Comprehensive cell health monitoring;
-Gas-electric reverse design for enhanced safety;
-External module insulation;
-Equipped with a pressure relief valve for automatic pressure relief and explosion protection.

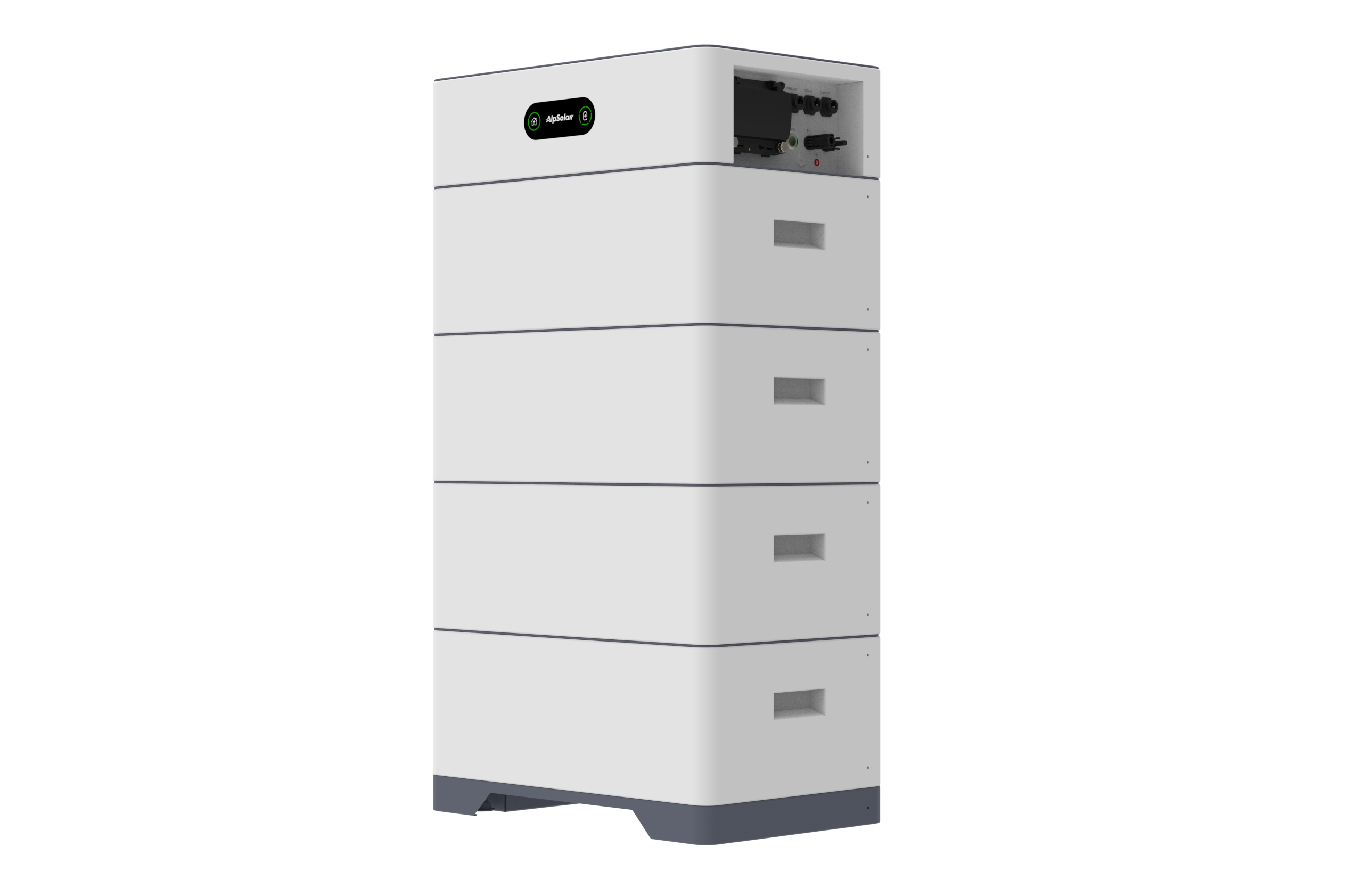

Modular installation with floating terminals for quick docking.
Buit-in heating system ensures safe operation even at -20℃.
Supports 1C charging and discharging,adapting to different load requirements.
Supports 12 parallel clusters, up to 368.6kWh.

No. T8AUK 116724 0008 Rev. 00_CERT.pdf - Page 1 of 3

No. T8AUK 116724 0007 Rev. 00.pdf - Page 1 of 2

No. T8A 116724 0005 Rev. 02_CERT.pdf - Page 1 of 3

Product Details & Specifications

Model	CH510K2M001	CH515K3M001	CH520K4M001	CH525K6M001	CH530K7M001
Performance Specifications
Battery Type	Lithium Iron Phosphate (LFP)
Rated Energy (kWh)	10.24	15.36	20.48	25.60	30.72
Rated Voltage	204.8	307.2	409.6	512.0	614.4
Voltage Range	179.2~233.6	268.8~350.4	358.4~467.2	448.0~584.0	537.6~700.8
Rated Capacity (Ah)	50
Rated Charge Current (A)	25
Rated Discharge Current (A)	25
Max Continuous Charge Current (A)	50
Max Continuous Discharge Current (A)	50
Communication	RS485 / CAN2.0
Display	LED indicator lights + mobile APP (coming soon)
Cycle Life	10 years or 6,000 cycles (@90% DOD, 70% EOL)
Protection Features	Four-layer safety protection [BMS, fire suppression capsule, system circuit protection, cloud monitoring], over-temperature protection, overcurrent protection, short-circuit protection, overcharge protection, over-discharge protection
Maximum Parallel Units	12
Intelligent Heating	Supported
Warranty	5 years (standard) / 10 years (optional)
Physical Specifications
Dimensions [W×H×D] (mm)	550580350	550785350	550990350	5501195350	5501400350
Weight (kg)	113.2	160.7	208.2	255.7	303.2
Environmental Specifications
Storage Temperature (℃)	0 ~ +35
Discharge Temperature (℃)	-20 ~ +55
Charge Temperature (℃)	-20 ~ +50
Relative Humidity	5% ~ 95%
IP Rating	IP65
Altitude (m)	≤2000
Cooling Method	Natural cooling
Mounting Method	Indoor / Outdoor floor-standing installation
System Certifications
Battery System	IEC 62619-2022, IEC/EN 62040-1
EMC Certification	EN/IEC 61000-6-1-2019, EN/IEC 61000-6-3-2021, EN/IEC 61000-6-2-2019, EN/IEC 61000-6-4-2019
Other Certifications	UN 38.3, RoHS 2.0

* Test conditions: 25°C, at the beginning of product life cycle.

* Product specifications are subject to change without prior notice.
